Gradient - Gradient Functions

AGG provides plenty of way of generating color gradients. There are two components in drawing a color gradient:

1. gradient function, which generates a scalar intensity value based on the current x, y position.
2. color function, which generates a color based on the intensity value.

For this tutorial, we will play around with various gradient functions. However, for the color function, we will use a simple agg::gradient_linear_color object.

You will need the following types. There are a number of gradient function classes. In this example, we use agg::gradient_x.

typedef agg::gradient_x GradientFunctionType;
typedef agg::gradient_linear_color<agg::rgba8> ColorFunctionType;
typedef agg::span_interpolator_linear<agg::trans_affine> InterpolatorType;
typedef agg::span_allocator<agg::rgba8> SpanAllocatorType;
typedef agg::span_gradient<agg::rgba8,
                           InterpolatorType,
                           GradientFunctionType,
                           ColorFunctionType> SpanGradientType;

Now we create objects for each type and hook everything up.

Note that for the matrix used for the linear interpolator, it is the inverted matrix for reverse lookup. This is quite similar to how images are drawn (Image - Basics).

agg::trans_affine invertMatrix (matrix);
invertMatrix.invert();
InterpolatorType interpolator (invertMatrix);

GradientFunctionType gradientFunction;
ColorFunctionType colorFunction (agg::rgba8 (0, 0, 0, 0xff),
                                 agg::rgba8 (0xff, 0xff, 0xff, 0xff),
                                 100);

SpanGradientType sg (interpolator, gradientFunction, colorFunction, 0.0, 50.0);
SpanAllocatorType sa;

agg::rasterizer_scanline_aa<> ras;
agg::scanline_p8 scanline;

ras.auto_close(false);
ras.reset ();
TransformPath<SimplePath> tp (path, matrix);
ras.add_path(tp);
agg::render_scanlines_aa(ras, scanline, rBase, sa, sg);

Example

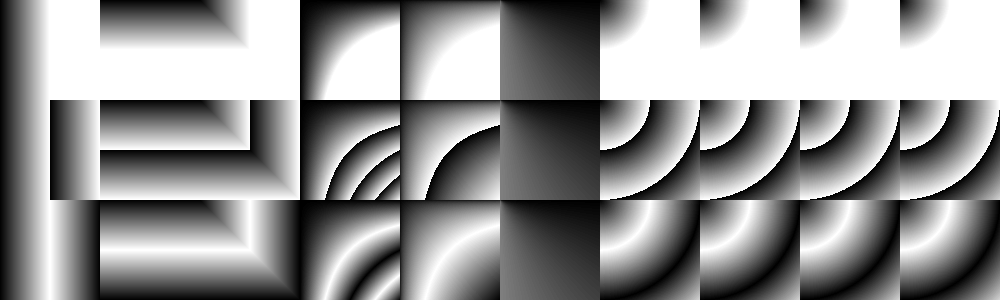

tutorial_gradient_1.cpp generates 3 rows of gradient functions. The first row have a bunch of squares that are generated using the following gradient functions.

1. agg::gradient_x
2. agg::gradient_y
3. agg::gradient_diamond
4. agg::gradient_xy
5. agg::gradient_sqrt_xy
6. agg::gradient_conic
7. agg::gradient_circle
8. agg::gradient_radial
9. agg::gradient_radial_d
10. agg::gradient_radial_focus

The second row combines agg::gradient_repeat_adaptor with the gradient functions in the first row.

The third row combines agg::gradient_reflect_adaptor with the gradient functions in the first row.
